The BuckEscape™ Kit is an after fall self-rescue system that was designed as an energy-absorbing lanyard that has the capabilities to provide a worker with the ability to perform a self-rescue from a disabled Arial bucket or if the worker is ejected from the bucket and is suspended from their lanyard. The kit also features built-in suspension trauma steps to alleviate pressure during the self-rescue process. Check out the video of the system in use below or click here.
Ideal for troubleshooters and single-man crews.
For one-time use lanyard order 6VV115R2S2.
For descender kit order BuckEscape™ Descender Kit - 302AF-65.
SELF-RESCUE SYSTEM (302AF-65) FEATURES:
- Descender made of light-weight aircraft grade aluminum features an anti-panic braking system, which will stop the descent if the user releases or compresses the handle of the descender all the way, making this the go-to product for all your self-rescue situations.
- 65’ (19.8 m) of compact TVAC descent line measuring only ¼” (6.8mm) and stands up to heat on long descents.
- 3,600 lb. rated gate steel snap hook.
- 3,600 lb. rated gate steel carabiner.
- This product has a user weight limit of 130 to 310 lbs. (59 to 140 kg) when fully equipped.
- Tested to Requirements of ANSI Z359.4
**Note: Bag Material withstands 40cal/cm2 electric arc exposure.

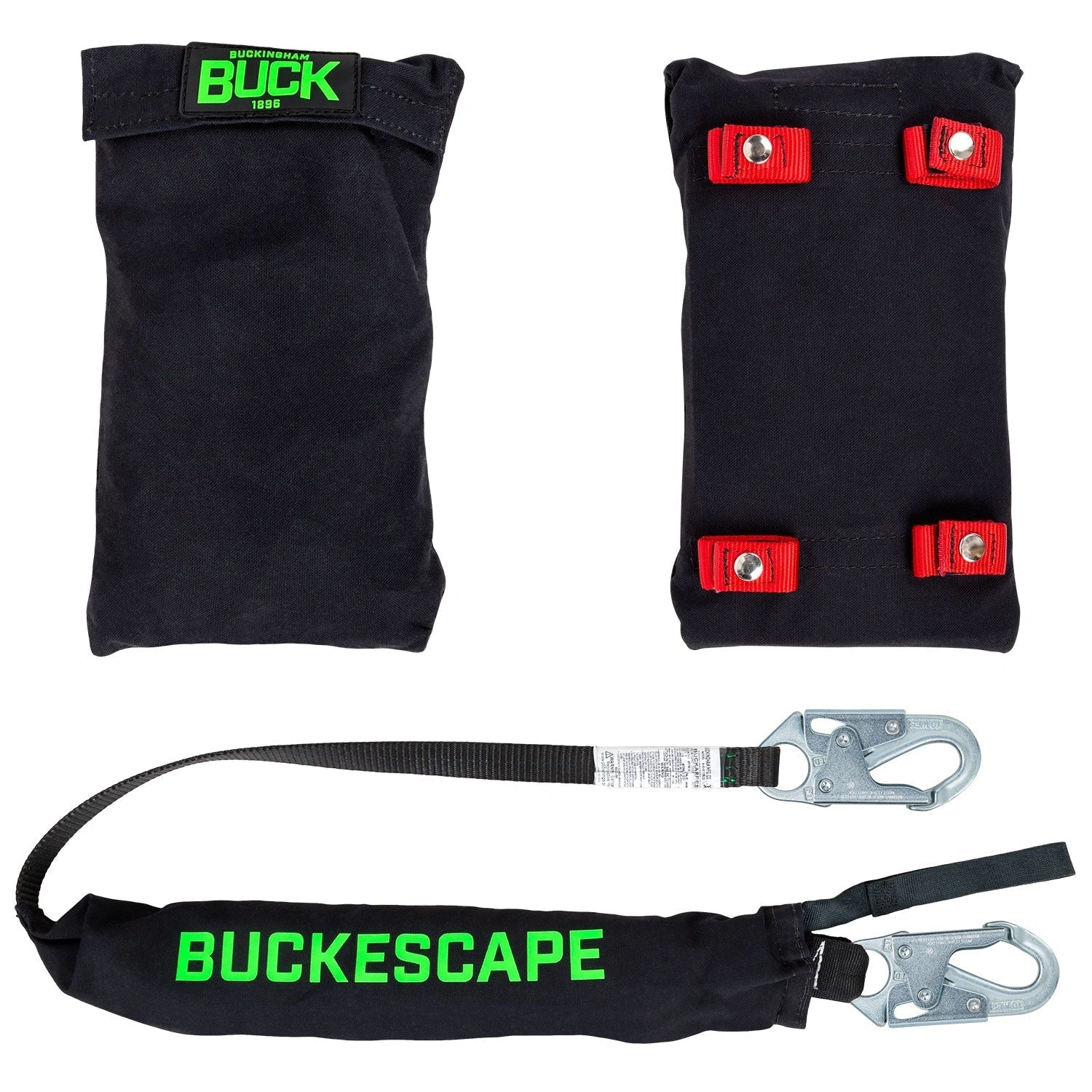

BUCKESCAPE™ TRAINING LANYARD (6VV115R3S2) FEATURES:
The BuckEscape™ rescue lanyard is a one-time use energy absorbing lanyard with a shock pack that features an aluminum snap hook on each end for use with a full-body harness with a dorsal attachment.
- The shock pack will deploy the internal contents around 600 lbs. of applied force, but in the case that not enough force was applied a strap is provided that will allow you to deploy the internal contents yourself.
- The internal contents consist of a bent D-ring, 2 relief ladder straps and a relief ladder adjustment strap to ascend yourself into the ladder straps, minimizing suspension trauma.
SPECIFICATIONS:
| KIT: |
| Part Number: | 302AFKIT-65 |
| Product Name: | BuckEscape™ Kit |
| Kit Weight: | 7.23 lbs. |
| Kit Applicable Standards: | ANSI Z359.4 |
| Kit Weight Limit: | 310 lbs. 140 kg. |
| Made in the USA? | Yes |
| ROPE PRODUCT SPECIFICATIONS: |
| Rope: | 6.8 mm (1/4') TVac Rope, 6.8 mm T-Vac is a high strength specialty cord that features a Technora sheath and nylon core. |
| MBS: | 3,619 lb. / 16.1kN |
| Rated: | 310 lbs. |
| Connector: | 3,600 lb. rated gate steel locking snap hook (1718) |
| DESCENT DEVICE: |
| Length: | 6″ |
| Width: | 2″ |
| MBS: | 3,035 lb. / 13.5 kN. |
| Weight: | 6.0 oz. |
| Connector: | 3,600 lb. rated gate aluminum carabiner (5555S4) |
| STORAGE BAG: |
| Part Name: | BuckEscape™ Replacement Bag |
| Part Number: | 302B-65 |
| Length: | 13' |
| Width: | 7' |
| Inside Pockets: | 1 |
| Internal Tie-off Loop: | Yes |
| Bag Material: | 11oz. Navajo FR fabric |
| Bag Stiffener: | Yes |
| Attachment Type: | Fastener Loops (4) |
| Closure Type: | Hook/Loop & Snaps |
| ENERGY ABSORBING LANYARD: |
| Product Number: | 6VV115R2S2 |
| Product Name: | BuckEscape™ Lanyard |
| Overall Length: | 5 |
| Outer Material: | 1' Nylon and Navajo FR fabric |
| Inner Material: | 1' Nylon Web |
| Adjustable: | No |
| Shock Pack: | Yes |
| Shock Pack Length: | 16' |
| Protector: | Yes |
| Protector Type: | 11 oz Navajo FR Fabric |
| Red Wear Center: | Yes |
| Primary Attachment Type: | Locking Snaphook |
| Primary Attachment Material: | Steel
|
| Weight: | 3.23 lbs. |
| Single Use: | Yes |
| Standards: | ANSI Z359.13 & ASTM F887 Electric Arc Flash |
| Made in the USA?: | Yes |
INSTRUCTIONS & WARNINGS:
- BuckEscape - After Fall / Disabled Bucket – Self-Rescue System
VIDEOS:
Click Here to Download (Download)
