"¡Roca Exótica HYDRA: Triple Accionamiento y Polea Giratoria, tu Máxima Productividad!"
“¡Descubre la joya que transformará tu mundo: un objeto de belleza y misterio, forjado para despertar tus sentidos y contar historias sin palabras. Su diseño único te invita a la aventura, a la reflexión, a un viaje hacia lo inesperado. Siente su energía, déjate llevar por su magia.”
The HYDRA is a triple attachment pulley that features a swivel-top connection to facilitate the pulleys use on the saddle bridge, and for use in climbing systems. Rubber o-rings line the connection points to assist in holding carabiners tightly to avoid dangerous cross-loading.
*Usually ships in 7 to 14 days.
Hydra Technical Notice (.pdf)
Declaration of Conformity (.pdf)

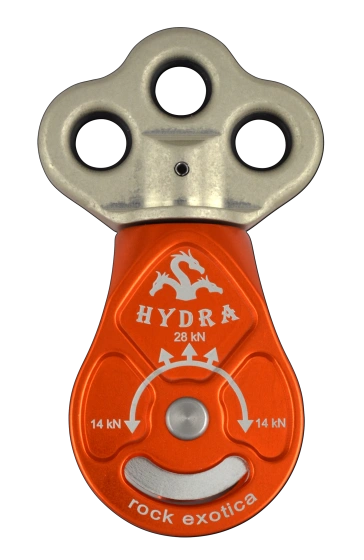

HYDRA
TRIPLE ATTACHMENT PULLEY
Any tool for arborists needs to be lightweight, durable and serve a variety of functions. The HYDRA fits that description by providing the functionality of a pulley with a rigplate. The HYDRA’s swivel top offers three connection points lined with rubber o-rings to grip carabiners tightly. These connection points were specifically designed for the rockO carabiner to avoid dangerous cross-loading.
The most simple use of the HYDRA pulley is on the rope bridge of the saddle, but it can be used in a variety of advanced ways. The Hydra is used in ascent systems, lanyard systems, fliplines, or as a redirect as shown below. In any configuration, the use of the HYDRA is greatly enhanced by the flexibility to add multiple connections and rotate when needed.
Part Number: P4
Weight: 20 oz (575 gm)
MBS: 2 x 14 kN=28 kN
WLL: 2 x 2.5 kN=5 kN
Max Rope: 13 mm
Sheave Dia: 2.1(53mm)
Certification: CE
- Combines a pulley, rigging plate and swivel all in one compact piece of equipment
- Use on the saddle bridge, as a lanyard adjuster or in your climbing system
- Eliminates twisting of the climbing line when used as a rolling attachment point on the saddle bridge
- Rubber grommet-lined attachment points hold carabiners snugly to help prevent cross-loading
- Pulley sheave uses high-efficiency bearing for smooth operation
- Pulley body is machined from solid aluminum to increase strength and decrease weight
