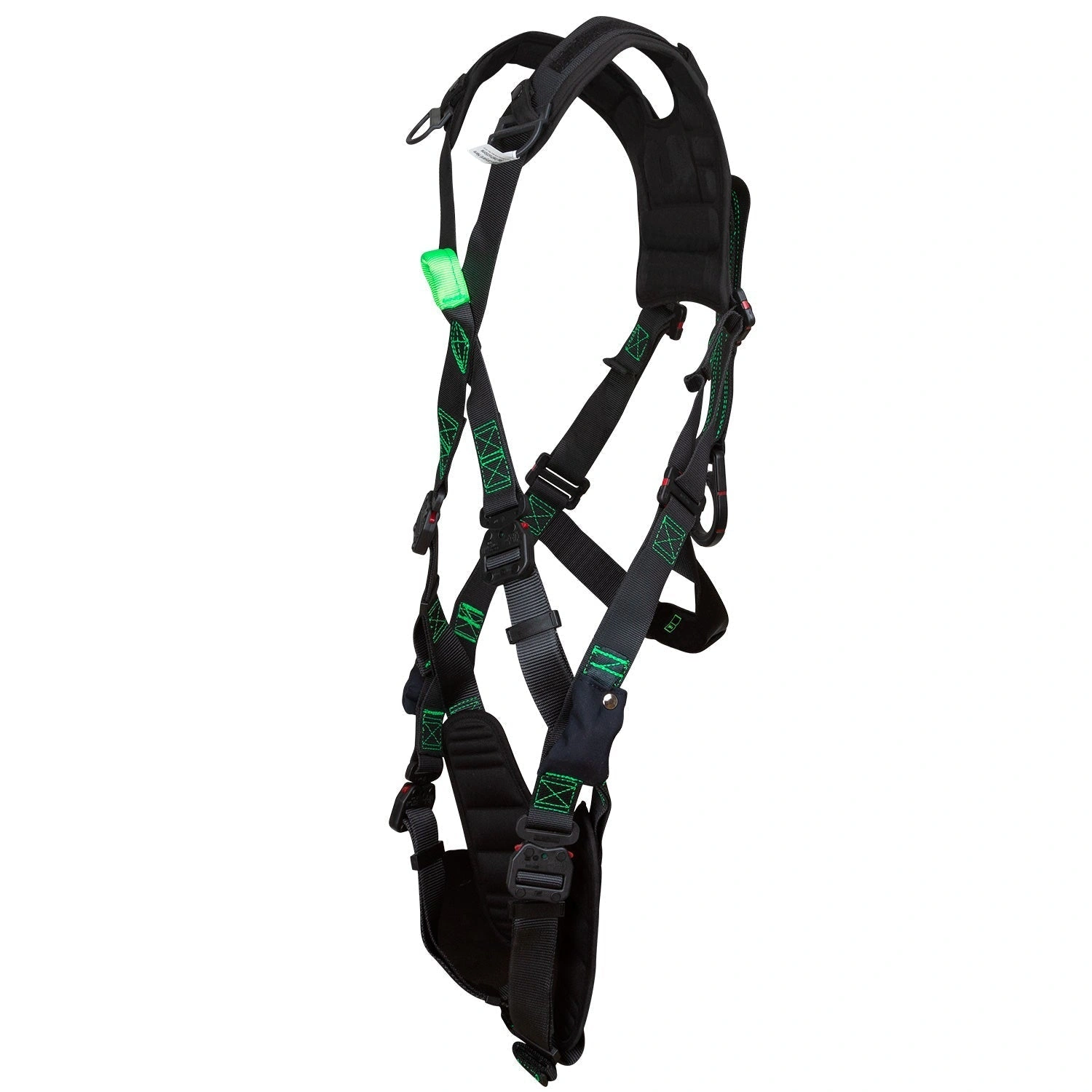

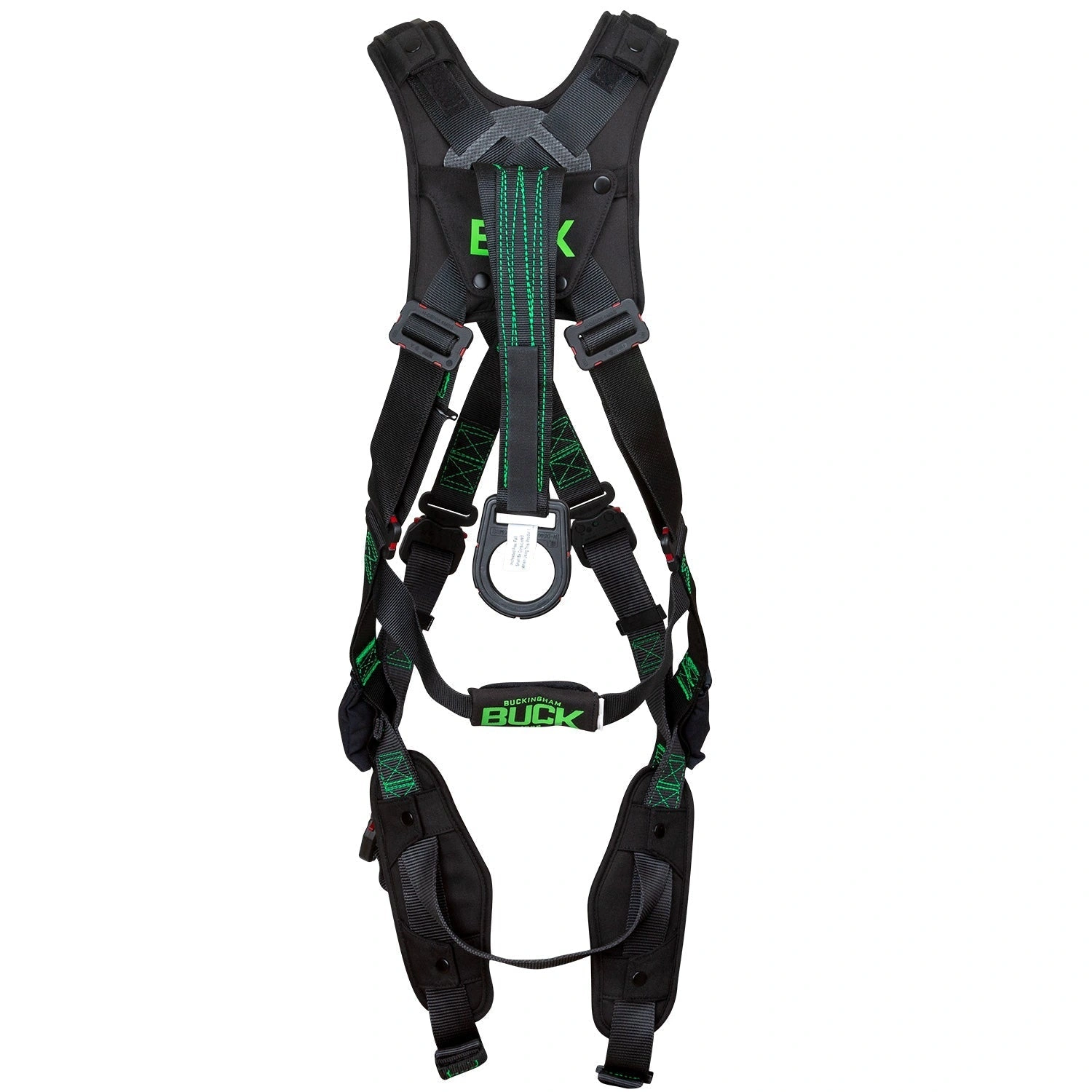

An X-style TrueFit™ harness equipped entirely with dielectric hardware designed for working conditions with electrical hazards, making this a great option for substation and other utility work. The dielectric hardware eliminates the potential of static electricity being transferred through steel hardware if working around an energized conductor in wet or damp conditions. Also, Dielectric hardware has a better resistance to corrosion in extreme conditions (hot/humid or salty air environments).
Meets or exceeds ASTM F887 Electric Arc Performance Requirements, ANSI Z359.
TrueFit™ Features:
- One size will fit anyone from a small up to a 3XL!
- Whether your 5′ 1″ and 130 lbs. or 6′ 6″ and 325 lbs., this harness will fit you.
- Unique adjustment features both on the front and back of the harness make this a perfect choice if you are looking for a universal harness.
Other Features:
- Dielectric quick connect chest buckles.
- Dielectric quick connect leg strap buckles for easy donning.
- Dorsal pigtail with Dielectric D-Ring for attachment purposes. The Pigtail option allows for easier connection and disconnection from your lanyard and allows you to store the lanyard in the bucket.
- Lightweight back & shoulder pads.
- Lightweight leg pads.
- Sternal web loop.
- Harness comes w/energy absorbing lanyard breakaway attachment (ensure ANSI compliance if removing back pad) & leg strap retainers to use if needed.
- Harness features permanently attached BuckStep™ 2.0 instead of the traditional girth hitching attachment method.
Product Specifications:
| Product Number: | U602P8Q11 |
| Product Name: | BuckOhm™ Blackout TrueFit™ X-Style Harness with Pigtail |
| Material: | Nylon |
| Chest Strap: | X-Style |
| Leg Strap: | Dielectric Quick Connect Buckles |
| Thread Stitching: | Nylon |
| Torso Adjustment: | Yes |
| Shoulder/Leg Pads: | Yes - Shoulder & Leg |
| Harness Type: | X-Style |
| Frontal Attachments: | Web Loop |
| Dorsal Attachment | Pigtail w/ Dielectric D-Ring |
| Retrieval Attachments: | No |
| Size: | Universal (S-3X) |
| Rescue Loops: | No |
| Trauma Straps: | Yes |
| Positioning D-rings: | No |
| Body Belt Attachment: | No |
| Product Type: | Fall Arrest / Fall Restraint |
| User Weight Capacity: | Rated to 420 lbs. when used with equivalently rated accessories. |
| Weight: | 5.6 lbs. |
| Standards: | ASTM F887, ANSI Z359, OSHA 1926.954(b)(1)(ii) |
| Made in the USA?: | Yes |
Instructions & Warnings:
Harness Sizing Chart
Harness Wearing Instructions
Suspension Trauma Rescue System Instructions
The BuckOhm Line Video:
